Moisture Target™Series 6 Moisture Analyzer Features
• Low-cost, single-channel hygrometer for OEM
applications
• M Series moisture probe or VeriDri moisture
transmitter compatible
• NEMA 4 weatherproof membrane front display/
keypad
• Built-in isolated current or voltage analog output
• MicroSD card for logging data up to 32 GB
• Panel-mount and board-level confi gurations
• Fail-safe fault alarm relay
• Two Form C measurement alarm relays
• Upgrades from MTS5 with adaptor face plate
Applications
This single-channel analyzer measures moisture
in compressed air and gases. Designed for
permanent installations, it is used in conjunction
with M Series moisture probe or VeriDri moisture
transmitter for air/gas dryer original equipment
manufacturer (OEM) applications:
• Regenerative desiccant air or gas dryers
• Plastic drying applications prior to injection/
blowmolding
• Medical air dryers
• Glove box monitoring
Low Cost, Real-Time
Moisture Measurement
The Moisture Target Series 6 is an economical, single
channel, aluminum oxide hygrometer in the Moisture
Series line of analyzers. It is intended for OEM
applications requiring low-cost, accurate, real-time
moisture measurement.
Improves OEM Product
Performance
The Moisture Target Series 6 can signifi cantly
enhance the performance of OEM products by
allowing closed-loop control of moisture. For
example, in a regenerative dryer application it
can improve effi ciency by initiating desiccant bed
regeneration when needed, rather than on an openloop
timed cycle.

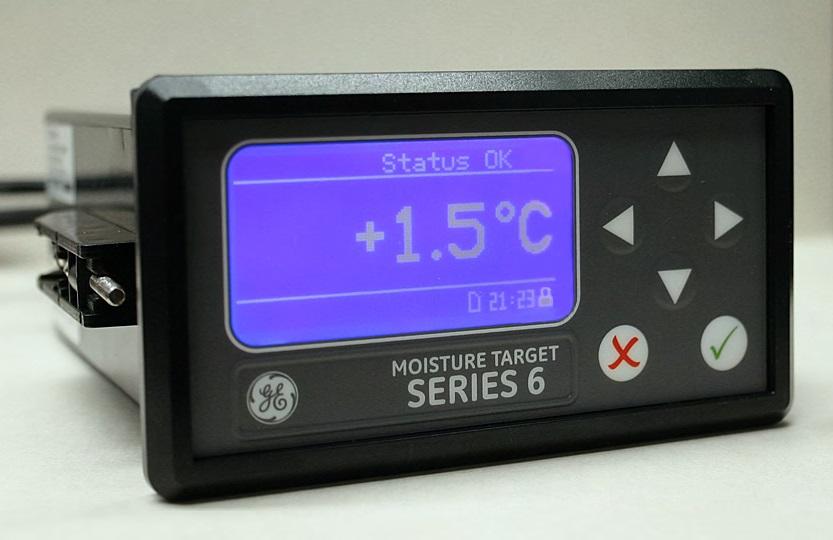

Panel-Mount
The panel-mount Moisture Target Series 6 comes
in a compact DIN standard meter housing for
applications where space is at a premium. The case
slides directly into the panel cutout, and is held in
place from the rear by captive screws.
The Moisture Target Series 6 can be supplied with
a bezel adaptor to allow installation into existing
Moisture Target Series 5 panel cut-outs.
Uses M Series Probes and
VeriDri Transmitter
The Moisture Target Series 6 uses M Series
aluminum oxide moisture sensor probe or VeriDri
moisture transmitter. M Series probes and VeriDri
transmitter are rugged and accurate true absolute
humidity sensors with calibration traceable to NIST.
Exceptional dynamic range, speed of response and
calibration stability have made the aluminum oxide
sensor the standard for performance and value in
industrial moisture measurement for more than 40
years.
Microprocessor-Based
Electronics
The microprocessor-based Moisture Target Series 6
accurately tracks fast-changing process conditions
and displays dew/frost point temperature in °F or °C
on an LCD. Dew/frost point is also available as an
analog voltage or current output, and the Moisture
Target Series 6 features built-in isolation to ensure
the integrity of signals to remote devices. The unit
also features two Form C alarm relays for high and
low dew/frost point limits. The microprocessor-based
electronics and six-button keypad combine to make
selection of analog output zero and span, alarm
setpoints fast and easy, and entry of calibration data
sample.
Series 6 Specifi cations
Electronics
Intrinsic Safety
External safety barrier for moisture input (optional)
European Compliance
Complies with EMC Directive 2004/108/EC and
2006/95/EC Low Voltage Directive (Installation
Category II, Pollution Degree II)
Input
Moisture signal from GE Sensing thin-fi lm aluminum
oxide moisture sensor on an M Series probe or VeriDri
transmitter
Analog Output
Single internal isolated recorder output for dew point,
internally optically isolated, 10-bit (0.1%) resolution
Standard Switch-Selectable Outputs
• 0 to 2 V, 10k minimum load resistance
• 0 to 20 mA, 400 maximum series resistance
• 4 to 20 mA, 400 maximum series resistance
• User-programmable within the range of the
instrument and the corresponding sensor or
transmitter
Alarm Relays
• One fail-safe fault relay
• Two standard Form C relays SPDT, rated for 3 A at
250 VAC/30 VDC
• Set to any level within the range of the instrument;
programmable from the front panel
Alarm Set Point Repeatability
±0.2°F (±0.1°C) dew point
Datalogger
32 GB capacity with MicroSD card, 2 GB card included
Display
128 x 64 matrix LCD
Display Functions
Dew point temperature in °F, °C or sensor signals for
diagnostics
Power Requirements
Universal power 100-240 VAC @ 50-60 Hz, or 24 VDC
nominal
Temperature
• Operating: –4° to 140°F (–20° to 60°C)
• Storage: –40° to 158°F (–40° to 70°C)
Warm-Up Time
Meets specifi ed accuracy within three minutes
Confi gurations
• Panel (front panel meets Type 4 and IP66)
• Board version, without enclosure
